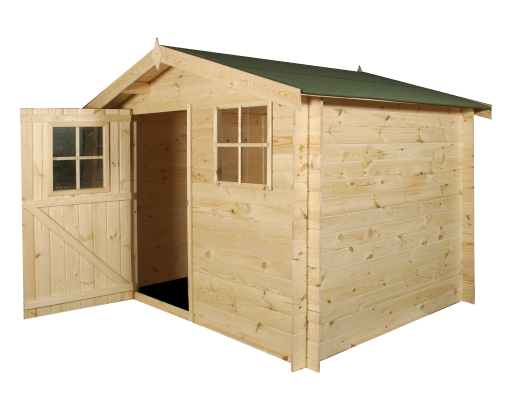

Logcabin

Classic

9002

265 x 205 + 15

Options

V9002Floor1
V9002IMGPressure treated floor1
G300Rain gutter classic1
3184P/1Shingles green3
3184P/2Shingles brown3
3184P/3Shingles black3
3184P/4Shingles red3
3184P/5Shingles duotone terra red3
3184P/6Shingles duotone slate3
3184P/7Shingles duotone autumn brown3
3184P/8Shingles duotone cedar3
3200Storm protection system1
3100Flower boxes (2)1
3198RWood shed 140x170 cm1

V9002

V9002IMG

G300

3184P/1

3184P/2

3184P/3

3184P/4

3184P/5

3184P/6

3184P/7

3184P/8

3200

3100

3198R

Dimensions

205
265
5,43
181,2
241,2
4,37
226
285
6,44
15
203
165

Properties

Ends of the boards: straigth
Walls: traditional log cabin style construction in 19 mm thick spruce from the high North
Roof: 15 mm thick spruce from the high North
Roof cover: green roofing

Dimension on ground baseproduct: 265 x 205 cm
Surface on ground baseproduct: 5,43 m²
Dimension inner baseproduct: 241,2 x 181,2 cm
Surface inner baseproduct: 4,37 m²
Dimension overall baseproduct: 285 x 226 cm
Surface overall baseproduct: 6,44 m²
Overhang roof front: 15 cm
Minimal recommended size of concrete base: 265 x 205 cm

Height of sidewall: 165 cm
Height of ridge: 203 cm
Roof slope: 14 °
m² to be treated: 50 m²
Weight: 255 kg
Packing WxDxH: 266 x 120 x 34 cm

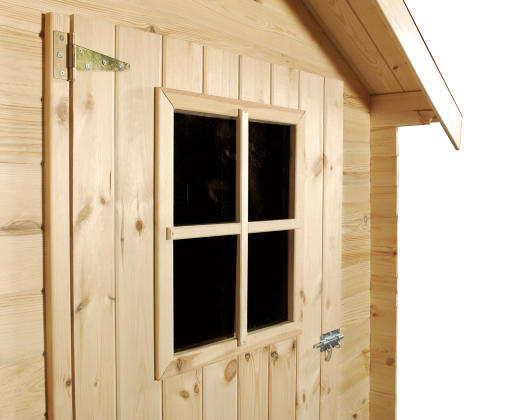

Description door 1: single door with glass section
Glazing door 1: transparent plexiglass
Lock door 1: padlock latch
Dimensions door 1 W x H: 87 x 154 cm
Description window 1: fixed window
Glazing window 1: transparent plexiglass

Downloads


Mounting instructions flower boxes
Mounting instructions shingles
Mounting instructions wood shed 170cm
Mounting instructions storm protection
Partlist
Mounting instructions gutter
Mounting instructions
Mounting instructions floor
