Logcabin

Dimensions

Properties

Ends of the boards: diamond
Treatment of timber: Pressure-impregnated class 3: protection against rot, mould and insects. With additional wax additive for temporary and limited water-repellency.
Walls: traditional log cabin style construction in 28 mm thick spruce from the high North
Roof: 15 mm thick spruce from the high North

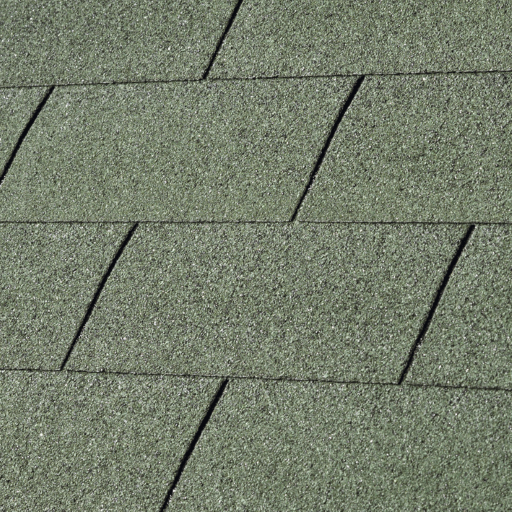

Roof cover: green roofing

Dimension on ground baseproduct: 325 x 265 cm
Surface on ground baseproduct: 8,61 m²
Dimension inner baseproduct: 299,4 x 239,4 cm
Surface inner baseproduct: 7,17 m²
Dimension overall baseproduct: 345 x 271 cm
Surface overall baseproduct: 9,35 m²
Minimal recommended size of concrete base: 325 x 265 cm

Height of sidewall: 175 cm
Height of ridge: 220 cm
Roof slope: 17 °
m² to be treated: 80 m²
Packing WxDxH: 330 x 110 x 55 cm

Doortype 1: DDB01
Description door 1: double door with glass section
Glazing door 1: transparent plexiglass
Lock door 1: stainless steel latch with cylinder
Dimensions door 1 W x H: 129,5 x 170 cm
Daylight size door 1 W x H: 130 x 160 cm
Window type 1: EVR02
Description window 1: single closed window type 2
Glazing window 1: transparent plexiglass
Daylight size window 1: 66 x 86 cm
