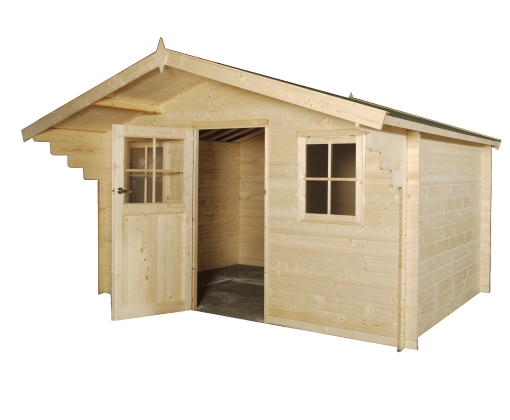

Logcabin

Dimensions

Properties

Type of construction: log cabin with windproof 3D connection
Ends of the boards: straigth
Walls: traditional log cabin style construction in 28 mm thick spruce from the high North
Roof: steel roof with anti-fog cloth

Dimension on ground baseproduct: 385 x 295 cm
Surface on ground baseproduct: 11,36 m²
Dimension inner baseproduct: 359,4 x 269,4 cm
Surface inner baseproduct: 9,68 m²
Dimension overall baseproduct: 405 x 391 cm
Surface overall baseproduct: 15,84 m²
Overhang roof front: 90 cm
Minimal recommended size of concrete base: 385 x 295 cm

Height of sidewall: 187 cm
Height of ridge: 248 cm
Roof slope: 18 °
m² to be treated: 115 m²
Weight: 750 kg
Packing WxDxH: 390 x 110 x 60 cm

Doortype 1: EDC01
Description door 1: single door Classic surface mounted
Glazing door 1: transparent glass 4 mm
Lock door 1: stainless steel latch with cylinder
Dimensions door 1 W x H: 88 x 189 cm
Daylight size door 1 W x H: 86 x 188 cm

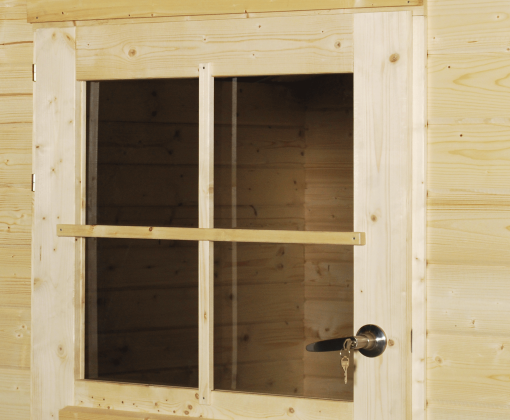

Window type 1: EOR01S
Description window 1: single opening window standing type 1
Glazing window 1: transparent glass 4 mm
Daylight size window 1: 60 x 73 cm
Window type 2: EOR01S
Description window 2: single opening window standing type 1
Glazing window 2: transparent glass 4 mm
Daylight size window 2: 60 x 73 cm
