Logcabin

Classic

3029AC

505 x 385 + 20

Options

V3029Floor1
V3029IMGPressure treated floor1
G400Rain gutter classic1
3200Storm protection system1
3100Flower boxes (2)1
3198ACWood shed 140x170 cm1
3199ACWood shed 140x260 cm1
3197ACSide shed 150x265 cm1

V3029

V3029IMG

G400

3200

3100

3198AC

3199AC

3197AC

Dimensions

385
505
19,44
359,4
479,4
17,23
411
525
21,58
20
248
187

Properties

Ends of the boards: straigth

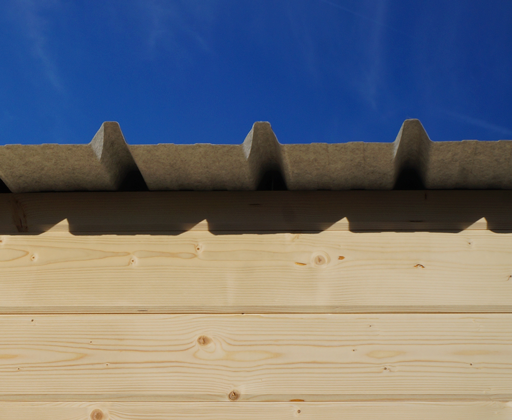

Walls: traditional log cabin style construction in 28 mm thick spruce from the high North

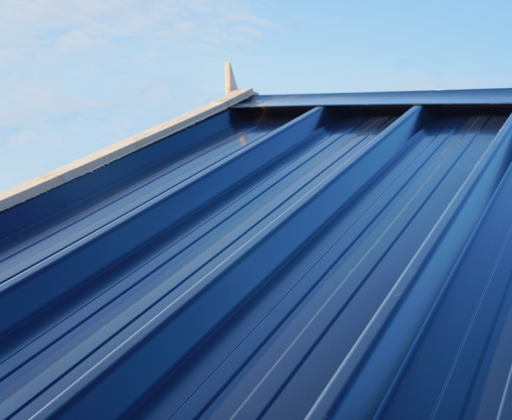

Roof: steel roof with anti-fog cloth

Dimension on ground baseproduct: 505 x 385 cm
Surface on ground baseproduct: 19,44 m²
Dimension inner baseproduct: 479,4 x 359,4 cm
Surface inner baseproduct: 17,23 m²
Dimension overall baseproduct: 525 x 411 cm
Surface overall baseproduct: 21,58 m²
Overhang roof front: 20 cm
Minimal recommended size of concrete base: 505 x 385 cm

Height of sidewall: 187 cm
Height of ridge: 248 cm
Roof slope: 14 °
m² to be treated: 75 m²
Weight: 1000 kg
Packing WxDxH: 510 x 110 x 60 cm

Doortype 1: DDC01
Description door 1: double door Classic surface mounted
Glazing door 1: transparent glass 4 mm
Lock door 1: stainless steel latch with cylinder
Dimensions door 1 W x H: 145 x 189 cm
Daylight size door 1 W x H: 143 x 188 cm
Window type 1: EOR01L
Description window 1: single opening window lying type 1
Glazing window 1: transparent glass 4 mm
Daylight size window 1: 73 x 60 cm
Window type 2: EOR01L
Description window 2: single opening window lying type 1
Glazing window 2: transparent glass 4 mm
Daylight size window 2: 73 x 60 cm
