Logcabin

Classic

3059L

415 x 320 + 90

Options

V3059LFloor1
V3059LIMGPressure treated floor1
G500Rain gutter classic1
3184P/1Shingles green8
3184P/2Shingles brown8
3184P/3Shingles black8
3184P/4Shingles red8
3184P/5Shingles duotone terra red8
3184P/6Shingles duotone slate8
3184P/7Shingles duotone autumn brown8
3200Storm protection system1
3100Flower boxes (2)1
3198RWood shed 140x170 cm1
3199RWood shed 140x260 cm1
3197RSide shed 150x265 cm1

V3059L

V3059LIMG

G500

3184P/1

3184P/2

3184P/3

3184P/4

3184P/5

3184P/6

3184P/7

3200

3100

3198R

3199R

3197R

Dimensions

320
415
13,28
294,4
389,4
11,46
416
435
18,1
90
248
187

Properties

Ends of the boards: straigth
Walls: traditional log cabin style construction in 28 mm thick spruce from the high North
Roof: 15 mm thick spruce from the high North
Roof cover: green roofing

Dimension on ground baseproduct: 415 x 320 cm
Surface on ground baseproduct: 13,28 m²
Dimension inner baseproduct: 389,4 x 294,4 cm
Surface inner baseproduct: 11,46 m²
Dimension overall baseproduct: 435 x 416 cm
Surface overall baseproduct: 18,1 m²
Overhang roof front: 90 cm
Minimal recommended size of concrete base: 415 x 320 cm

Height of sidewall: 187 cm
Height of ridge: 248 cm
Roof slope: 17 °
m² to be treated: 125 m²
Packing WxDxH: 420 x 110 x 60 cm

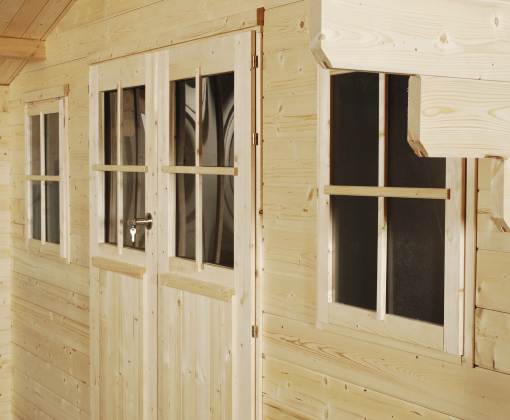

Doortype 1: DDC01
Description door 1: double door Classic surface mounted
Glazing door 1: transparent glass 4 mm
Lock door 1: stainless steel latch with cylinder
Dimensions door 1 W x H: 145 x 189 cm
Daylight size door 1 W x H: 143 x 188 cm
Window type 1: EOR01S
Description window 1: single opening window standing type 1
Glazing window 1: transparent glass 4 mm
Daylight size window 1: 60 x 73 cm
Window type 2: EOR01S
Description window 2: single opening window standing type 1
Glazing window 2: transparent glass 4 mm
Daylight size window 2: 60 x 73 cm
