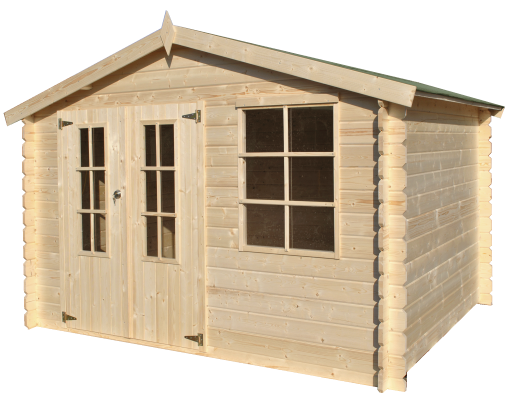

Logcabin

Classic

T3

325 x 265

Options

VT3IMGPressure treated floor1
VT3Floor1
G300Rain gutter classic1
3184P/1Shingles green4
3184P/2Shingles brown4
3184P/3Shingles black4
3184P/4Shingles red4
3184P/5Shingles duotone terra red4
3184P/6Shingles duotone slate4
3184P/7Shingles duotone autumn brown4
3200Storm protection system1
3100Flower boxes (2)1
3198RWood shed 140x170 cm1

VT3IMG

VT3

G300

3184P/1

3184P/2

3184P/3

3184P/4

3184P/5

3184P/6

3184P/7

3200

3100

3198R

Dimensions

265
325
8,61
239,4
299,4
7,17
271
345
9,35
220
175

Properties

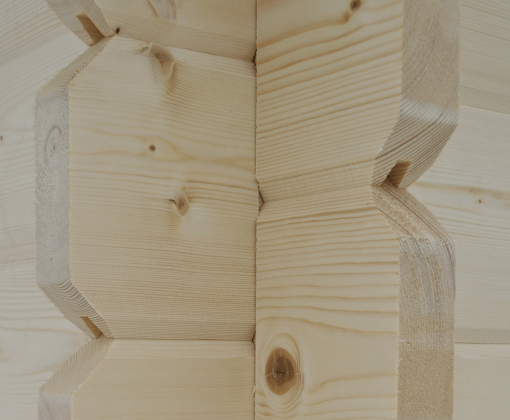

Ends of the boards: diamond
Walls: traditional log cabin style construction in 28 mm thick spruce from the high North
Roof: 15 mm thick spruce from the high North
Roof cover: green roofing

Dimension on ground baseproduct: 325 x 265 cm
Surface on ground baseproduct: 8,61 m²
Dimension inner baseproduct: 299,4 x 239,4 cm
Surface inner baseproduct: 7,17 m²
Dimension overall baseproduct: 345 x 271 cm
Surface overall baseproduct: 9,35 m²
Minimal recommended size of concrete base: 325 x 265 cm

Height of sidewall: 175 cm
Height of ridge: 220 cm
Roof slope: 17 °
m² to be treated: 80 m²
Packing WxDxH: 330 x 110 x 55 cm

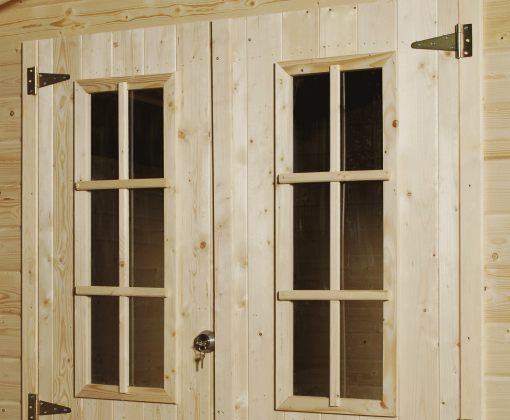

Doortype 1: DDB01
Description door 1: double door with glass section
Glazing door 1: transparent plexiglass

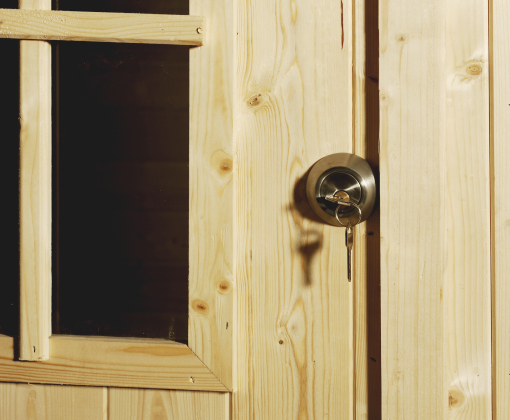

Lock door 1: stainless steel latch with cylinder
Dimensions door 1 W x H: 129,5 x 170 cm
Daylight size door 1 W x H: 130 x 160 cm

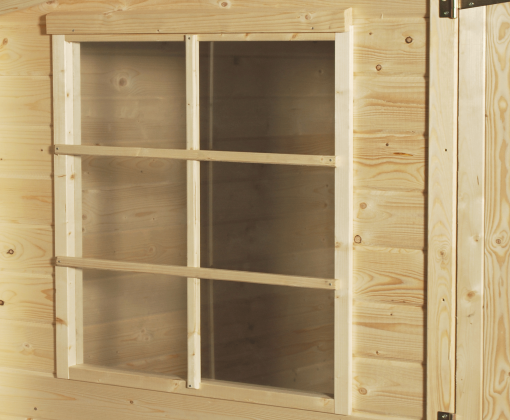

Window type 1: EVR02
Description window 1: single closed window type 2
Glazing window 1: transparent plexiglass
Daylight size window 1: 66 x 86 cm
